Recore A8

$149.00 excl VAT

An all-in-one solution for desktop 3D printers, Recore A8 offers everything you need in order to print fast and quiet and with a great user experience.

The 6 built in TMC2209 stepper motor drivers are cooled by an 8 layer PCB giving you a long lasting board even with the harsh environment of a 3D printer.

New with revision A8 is the use of the industry standard JST PH connectors which offers better cable retention, so the cables don’t come loose during a print.

Most of the connectors offer flexibility in that they can be used for multiple things. Everything from End-stops, Neopixels, Servos, inductive probes and BLtouch.

If 6 stepper motors is not enough, the expansion headers gives you the option to add two more stepper motor drivers, either the Restep using TMC2209 or the Revolt which allows running 2 motors off of a 48 V power supply.

If you want to print with higher temperatures you can! The temperature sensors are also flexible, so you can use regular thermistors on all 4 inputs, or without any additional components, 4 thermocouples on the same inputs. PT100 and PT1000 is also possible, PT100 requires an extra board.

Can also be purchased from Fabreeko: https://www.fabreeko.com/products/recore-a7-by-iagent

89 in stock

SKU: 6 Category:

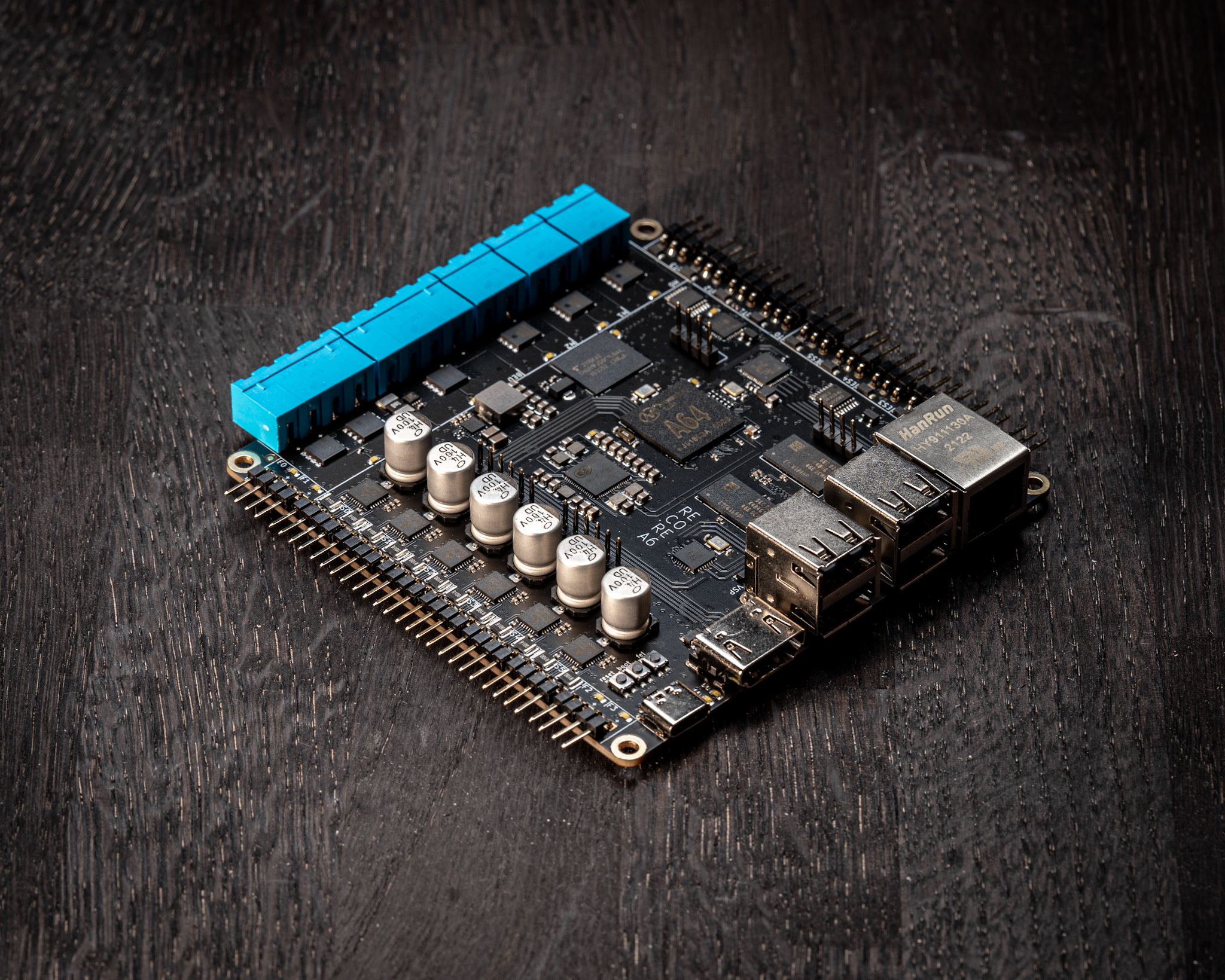

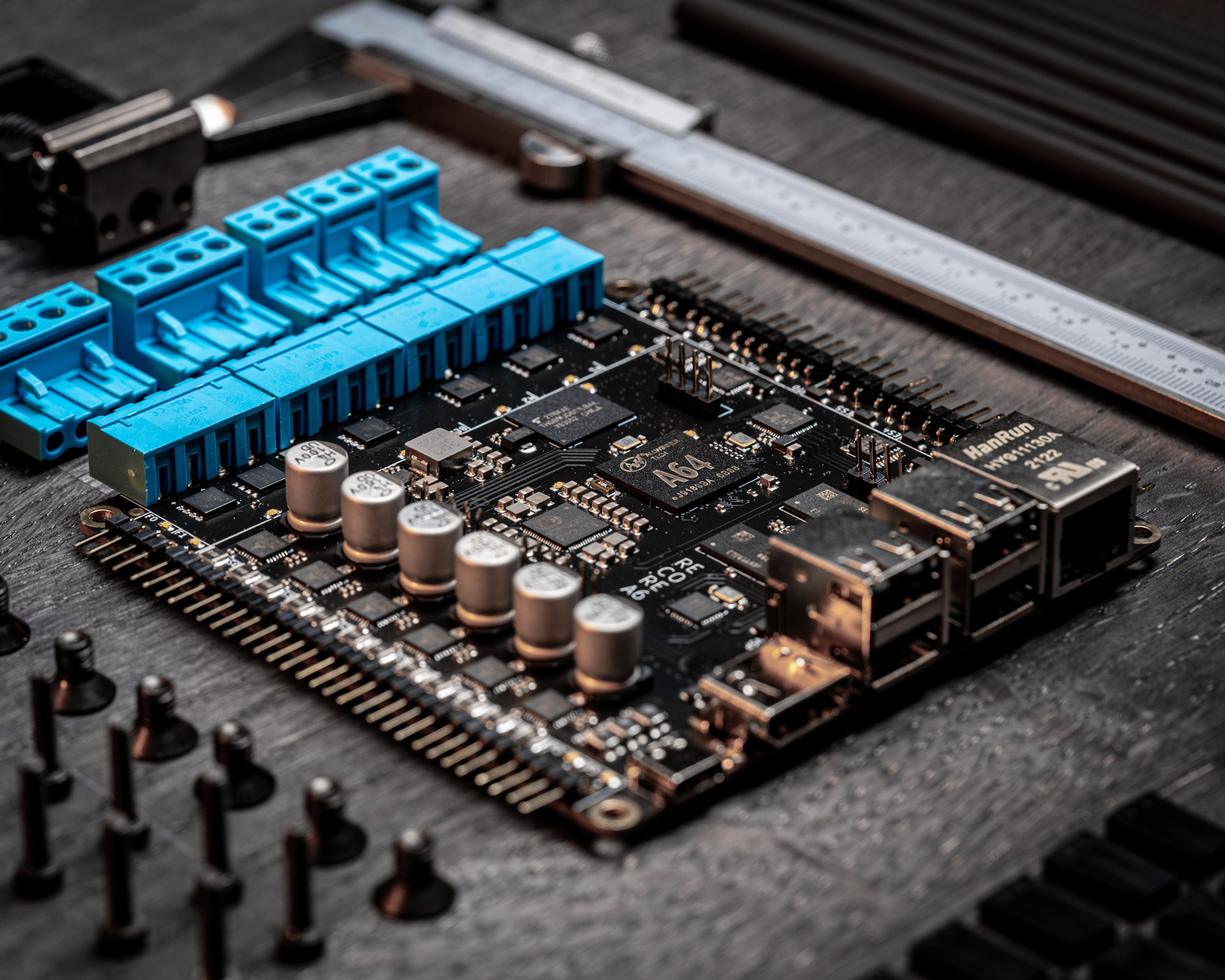

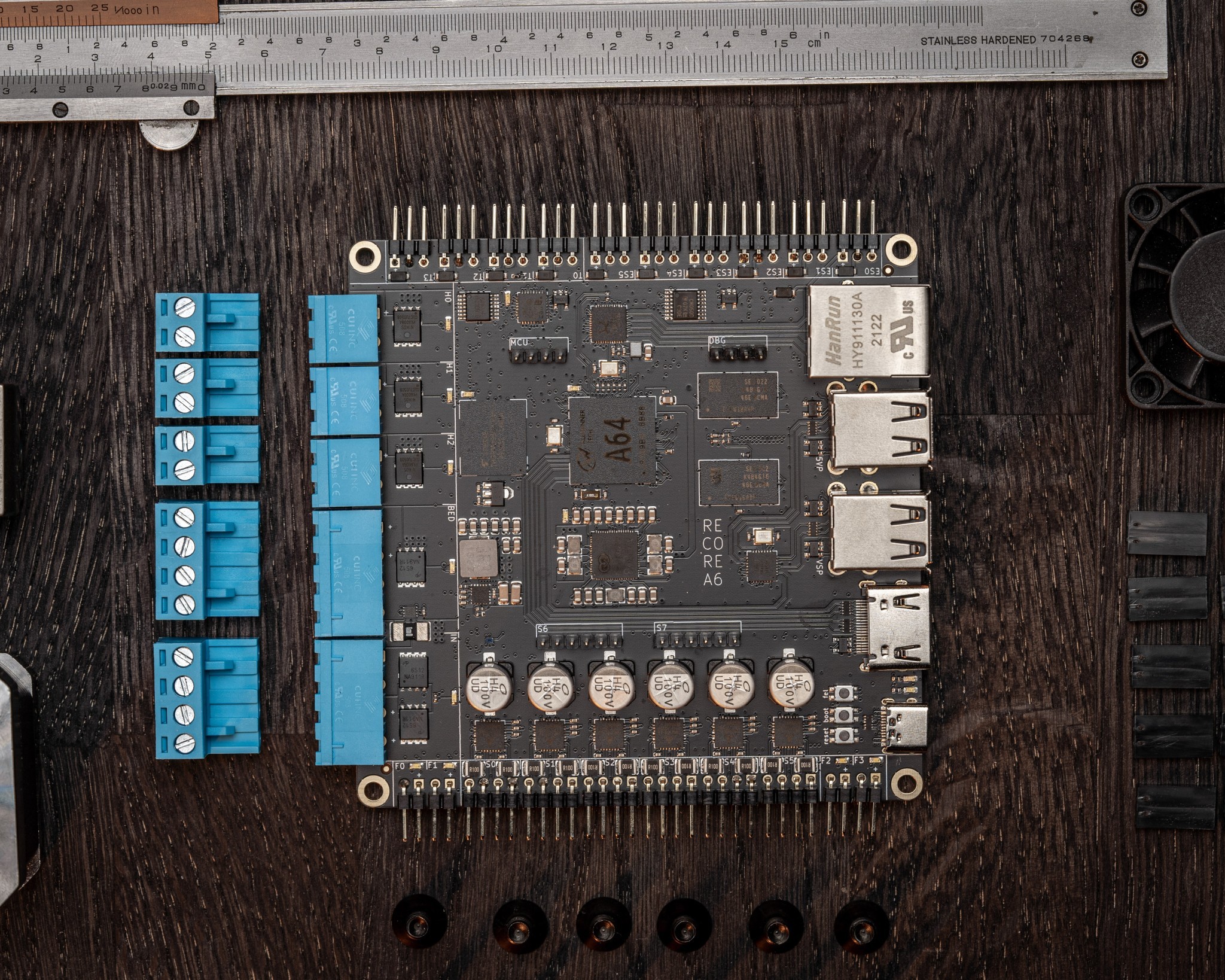

Recore is a fully integrated 3D printer control board for FDM printers that has all the functionality needed for most desktop 3D printers including 6 TMC2209 stepper motor drivers, 3 high power heaters and a heated bed. The board comes pre-installed with Linux operating system, Klipper and Fluidd with the option to run either MainSail or OctoPrint. The board has been designed to be flexible allowing a multitude of 3D printers to be used and is a great choice for both Voron/coreXY style printers and delta-printers.

To read more about how to get started with Recore A8, take a look at the Wiki: Recore A8

Recore A7 is still available from Fabreeko: https://www.fabreeko.com/products/recore-a7-by-iagent

You might also be interested in:
Connector pack for Recore A8
Restep A1
Remove A1
Rexfer A0

There is an ongoing series of YouTube videos of the Recore project. Here are the videos released so far:
01 – A brand new 3D-printer board: https://youtu.be/6rTK0NcI3y0
02 – First boot: https://youtu.be/q4bGFs00p5I
03 – Functional testing: https://youtu.be/1f242RZoaiA
04 – Recore eMMC: https://youtu.be/VjlJ2-rhS6U
05 – AR100: https://youtu.be/Q5tIKX7jtCA
06 – Recore Testing Jig: https://www.youtube.com/watch?v=2lFS3n8FOJk
07 – Thermal experiments: https://youtu.be/i32Tg2GgCNw
08 – Software upgrades: https://youtu.be/gD6V5pof0-0?si=rCIIWrkTrxGf0wxn

Weight 0.1 kg
Dimensions 12 × 12 × 4 cm
