Manga Screen 2 Big
$99.00 excl VAT
HDMI-compatible LCD screen with multitouch as seen on Kickstarter!
Two versions available: 4.8″, 720p or 5.9″, 1080p.
This product has been discontinued for now. A new version is planned, but not for some time. This page is here for documentation purposes.
Out of stock
Note: Manga Screen 2 (big and small) were manufactured as part of a Kickstarter Campaign, but have since been sold out. Due to the high MOQ for touch panels, they are available to business customers ordering a full batch of 1000 or more units. There will eventually be a new batch made that is suitable for low volume purchase, but only after Recore development is finished.
Full HD is 1920×1080 pixles, that is high for a 5.9″ LCD screen. Compared to
other similar sized and priced displays, it’s a lot of pixels pr buck!
Capacitive touch is the interface we have
all come to know and love from our smartphones.
Use one finger to tap,
two fingers to zoom, ten fingers for finger painting!
Manga Screen 2 is designed to work with
any single board computer like Raspberry Pi and BeagleBone Black,
plus just about any regular computer you can think of.
The touch panel will enumerate as an absolute position mouse.

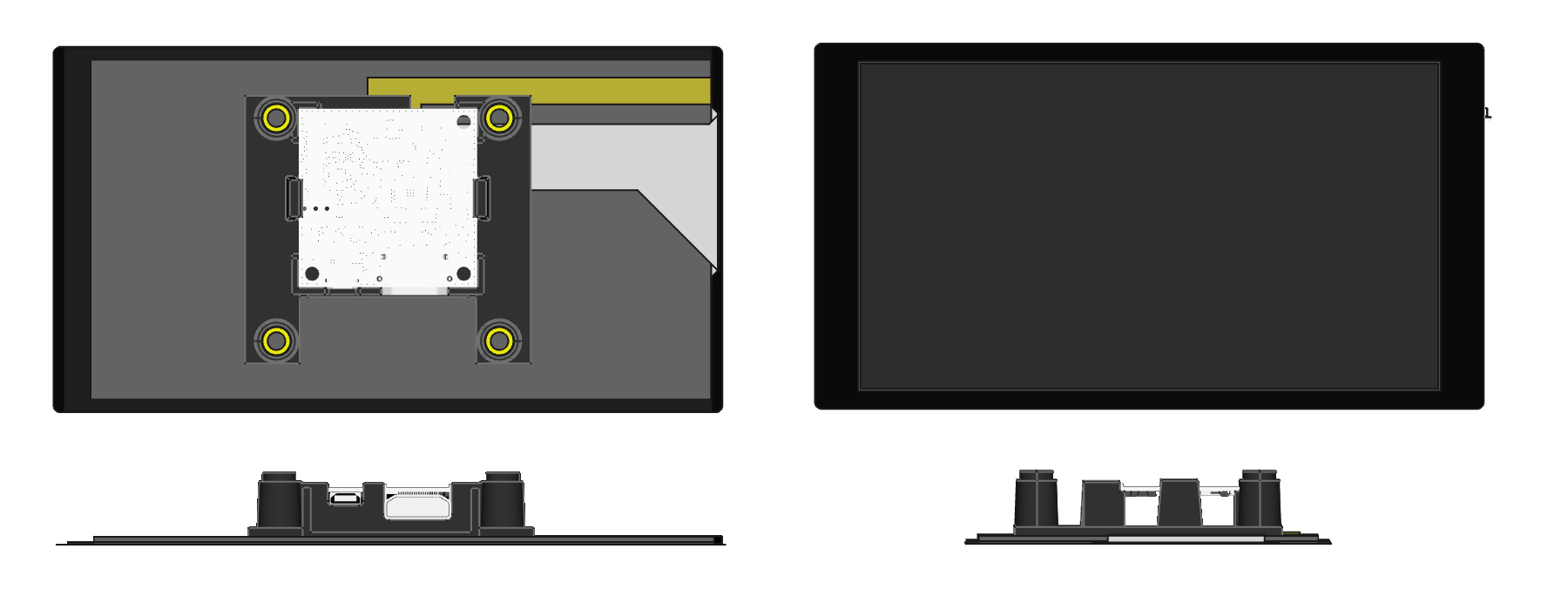

W: 150 mm
H: 81.9 mm
D: 17.8 mm
|High dynamic range IPS TFT LCD display||Capacitive touch panel
is a breeze to touch, just
like your smart phone.
|Unstyled symetric border for
use in any project.
|USB for power and
touch, HDMI for image
|Full HD (1080×1920) resolution.
Native resolution is portrait mode.
|Fixed resolution, but several
frame rates available. Max frame rate is 60 Hz.
Raspberry Pi 0 through 3,
and BeagleBone Black, plus
any computer running Linux or Windows.
|Serial interface for setting backlight|
|Pinch to zoom||5.9″ screen size.||Sharp LCD and Synaptics
capacitive touch chip.
|Dimensions||10.16 × 15.24 × 3.75 cm|
4.8" 720p, 5.9" 1080p
