Replicape Rev B

Description

Blazing fast

Replicape runs on BeagleBone Black, a 1GHz CPU with two additional 200 MHz PRUs. What does that mean? It means you can have a huge delta while still running OctoPrint and Toggle, over wifi, with a webcam.

Stealthy silent

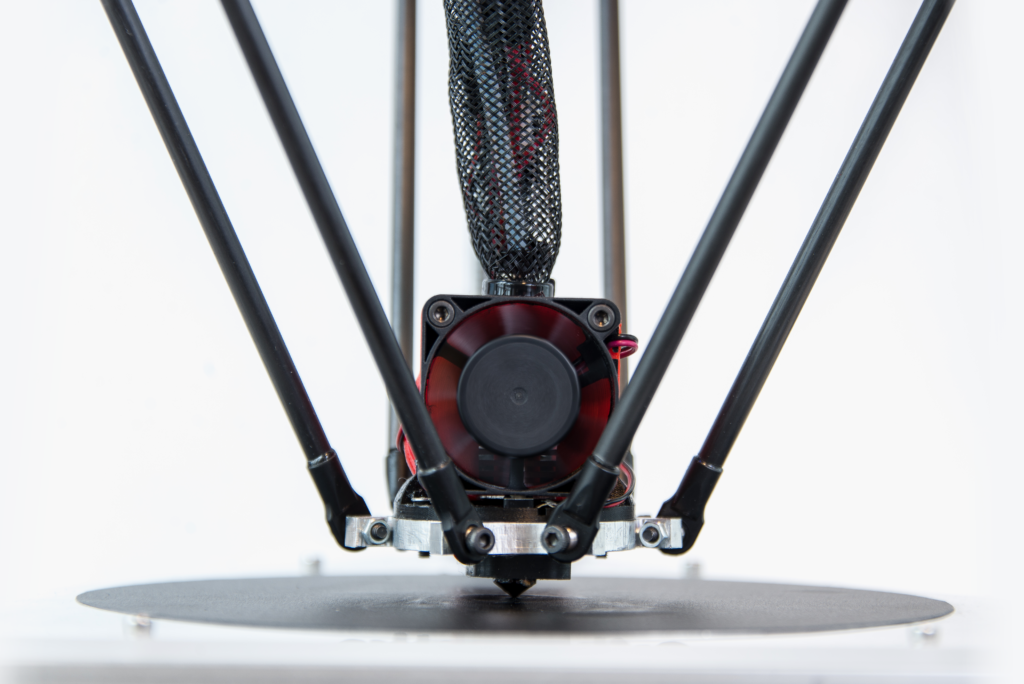

By using the industry leading TMC 2100 stepper motor drivers,the sound leves are lowered to an incredibly low level. The stepper motor whining will not be the most prominent sound for your 3D-printer.

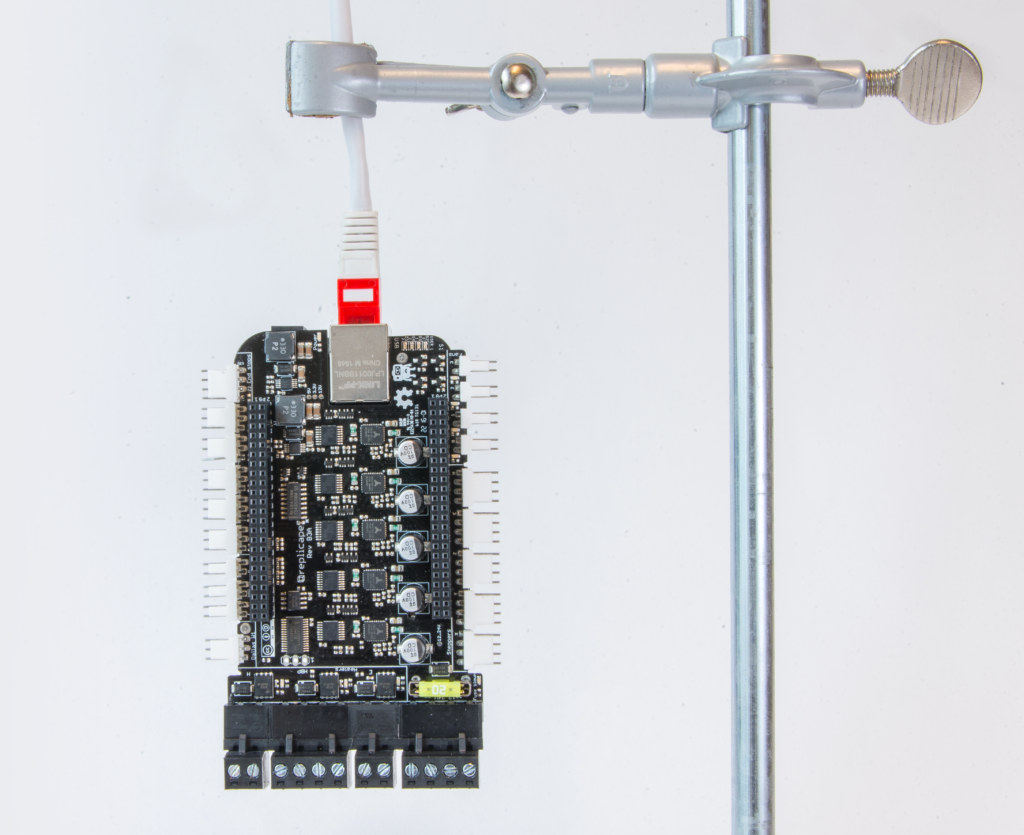

Small and connected

Replicape is a connected device, meaning it has access to the internet. That is good, becuase it means it can run a web server giving instant access to all computers
and smart phones in the network.

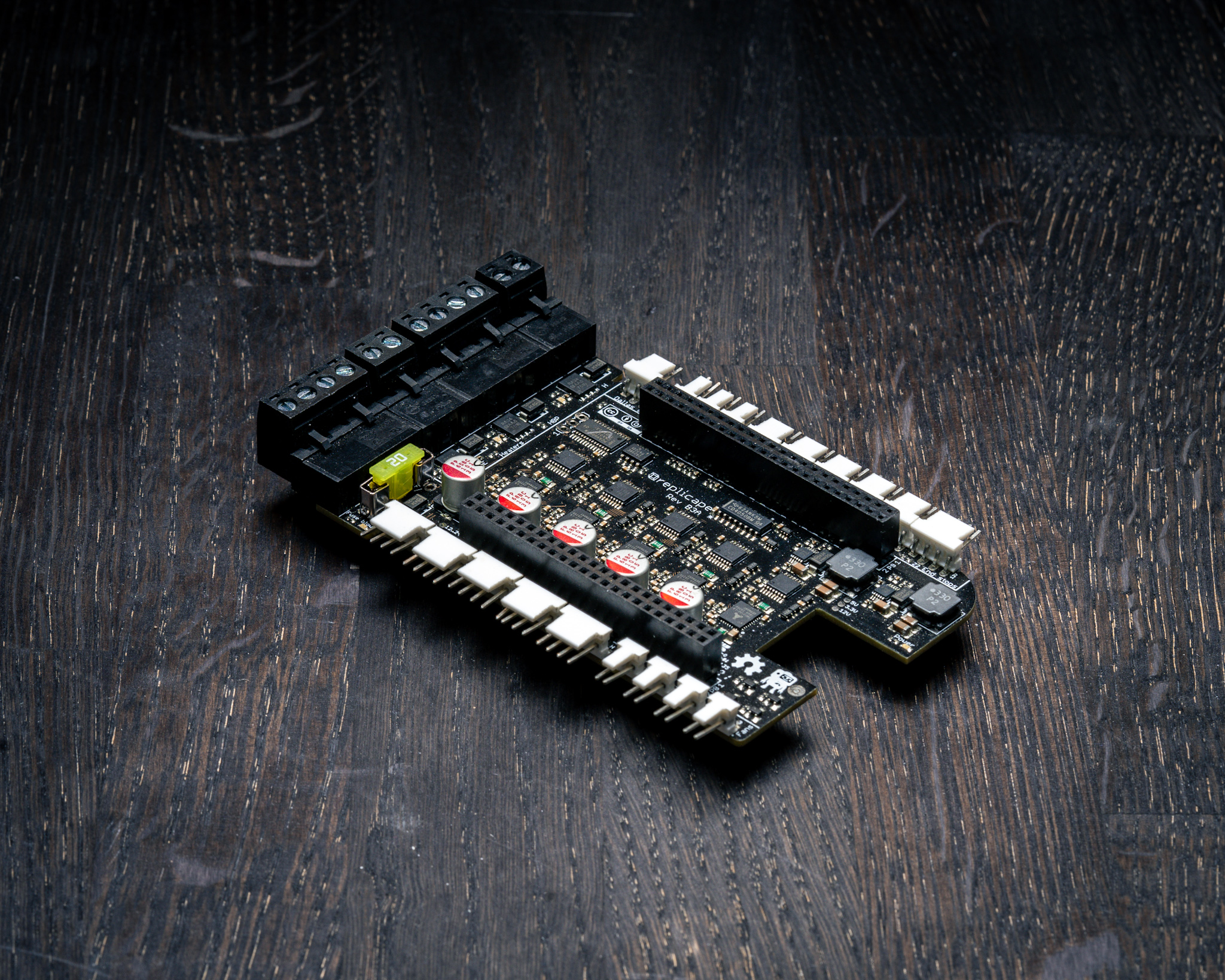

Tech specs

Redundant power connector limits the chance of fire due to over heating	Serial to parallel chips makes all microstepping and decay variatios available while limiting pin use.	Trinamic TMC 2100 are high power stepper motor drivers that are also very silent
EEPROM chip enables automatic cape recognition	Fuse blown indicator	Buffered inputs protects the BeabgleBone and makes end stops up to 15V tolerant
4 low power MOSFETs controls fans and LEDs with PWM precicion.	Heated bed connector has double connector for redundancy.	12V step down converter, enables fans and LEDs to run on 12V no matter what the input volage is
12V step down converter, enables fans and LEDs to run on 12V no matter what the input volage is	5V step down converter powers the BeagleBone, so only a single PSU is needed.	A 16 channel PWM chip controls all MOSFETs and a clever solution makes it set the stepper driver current
